DY-PH3225P/1.5M - EMS
OEM
9405409000
1. To improve on traditional lamp, so that the light efficiency is better
2. The shape uses the rounded design, has better ornamental value.

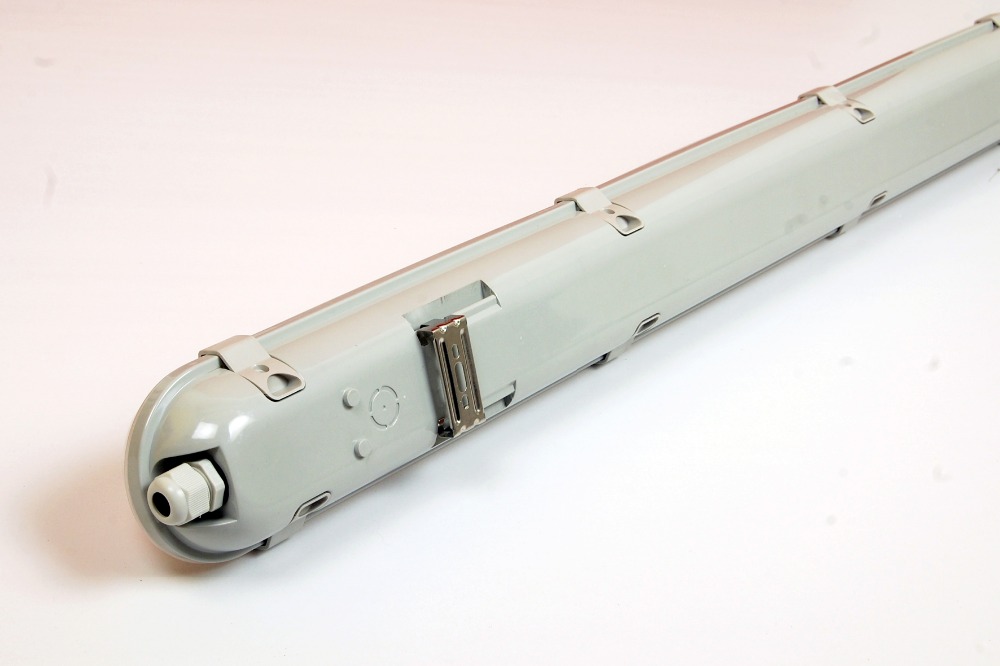

3. Clips adopts the design of screw holes have anti-theft function.
4. Lamp shade on the principle of optical design radian, let chimney has better smooth effect
Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P/0.6M | 220-240V ~ 50/60Hz | 20W | 2700-6500K | 2400 | 654 | 94 | 90 | 410 |
| DY-PH3218P/1.2M | 220-240V ~ 50/60Hz | 40W | 2700-6500K | 4800 | 1193 | 94 | 90 | 880 |
| DY-PH3225P/1.5M | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 6000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P/1.8M | 220-240V ~ 50/60Hz | 70W | 2700-6500K | 8400 | 1795 | 94 | 90 | 1350 |
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P-EM | 220-240V ~ 50/60Hz | 25W | 2700-6500K | 2000 | 654 | 94 | 90 | 410 |
| DY-PH3218P-EM | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 4000 | 1193 | 94 | 90 | 880 |
| DY-PH3225P-EM | 220-240V ~ 50/60Hz | 60W | 2700-6500K | 5000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P-EM | 220-240V ~ 50/60Hz | 75W | 2700-6500K | 6000 | 1795 | 94 | 90 | 1350 |
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P-S | 220-240V ~ 50/60Hz | 20W | 2700-6500K | 2000 | 654 | 94 | 90 | 410 |
| DY-PH3218P-S | 220-240V ~ 50/60Hz | 40W | 2700-6500K | 4000 | 1193 | 94 | 90 | 880 |
| DY-PH3225P-S | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 5000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P-S | 220-240V ~ 50/60Hz | 70W | 2700-6500K | 6000 | 1795 | 94 | 90 | 1350 |
1. To improve on traditional lamp, so that the light efficiency is better
2. The shape uses the rounded design, has better ornamental value.
3. Clips adopts the design of screw holes have anti-theft function.
4. Lamp shade on the principle of optical design radian, let chimney has better smooth effect
Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P/0.6M | 220-240V ~ 50/60Hz | 20W | 2700-6500K | 2400 | 654 | 94 | 90 | 410 |
| DY-PH3218P/1.2M | 220-240V ~ 50/60Hz | 40W | 2700-6500K | 4800 | 1193 | 94 | 90 | 880 |
| DY-PH3225P/1.5M | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 6000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P/1.8M | 220-240V ~ 50/60Hz | 70W | 2700-6500K | 8400 | 1795 | 94 | 90 | 1350 |
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P-EM | 220-240V ~ 50/60Hz | 25W | 2700-6500K | 2000 | 654 | 94 | 90 | 410 |
| DY-PH3218P-EM | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 4000 | 1193 | 94 | 90 | 880 |
| DY-PH3225P-EM | 220-240V ~ 50/60Hz | 60W | 2700-6500K | 5000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P-EM | 220-240V ~ 50/60Hz | 75W | 2700-6500K | 6000 | 1795 | 94 | 90 | 1350 |
| Model | Voltage/frequency | Power | CCT | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
| DY-PH3209P-S | 220-240V ~ 50/60Hz | 20W | 2700-6500K | 2000 | 654 | 94 | 90 | 410 |
| DY-PH3218P-S | 220-240V ~ 50/60Hz | 40W | 2700-6500K | 4000 | 1193 | 94 | 90 | 880 |
| DY-PH3225P-S | 220-240V ~ 50/60Hz | 50W | 2700-6500K | 5000 | 1493 | 94 | 90 | 1040 |
| DY-PH3235P-S | 220-240V ~ 50/60Hz | 70W | 2700-6500K | 6000 | 1795 | 94 | 90 | 1350 |
