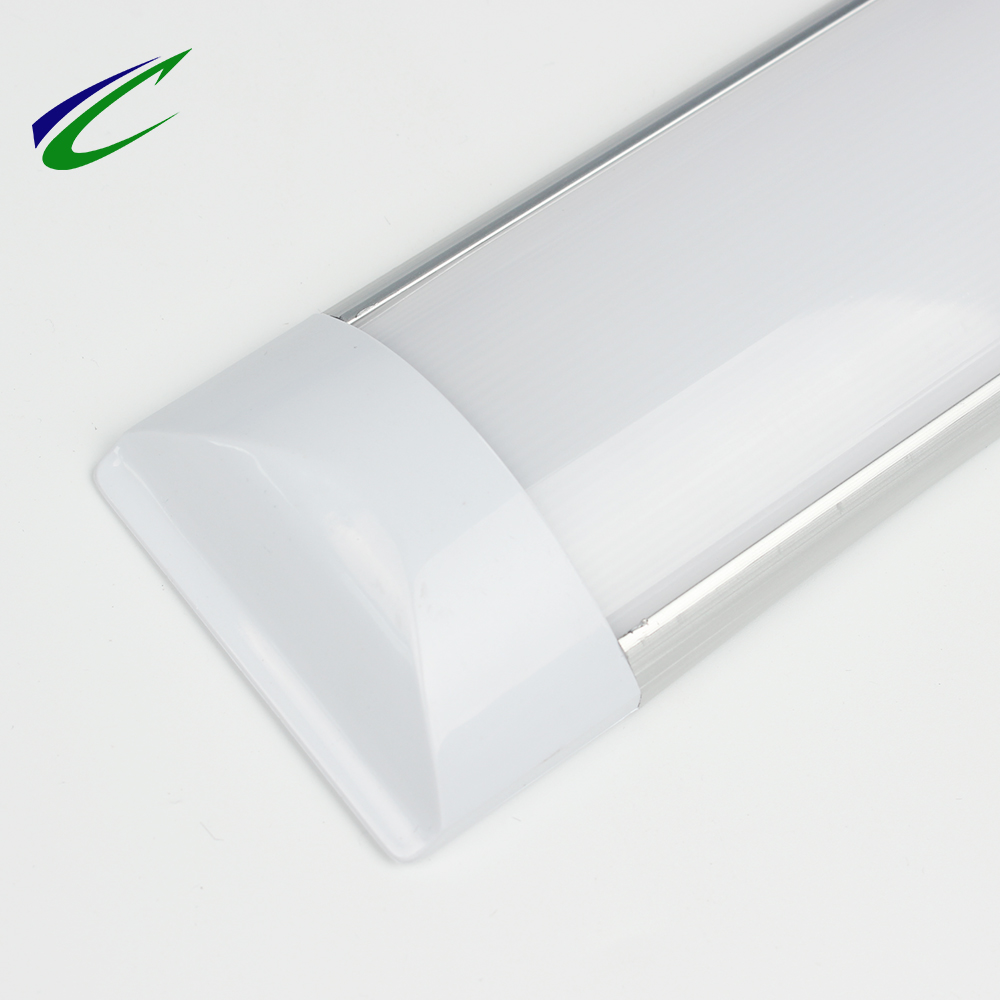

led batten light (different style to choose)

Availability:
Quantity:
  • DY-LED45W

  • OEM

  • 9405409000






Features:


- The product appearrance novel,the structure is simple.

- The product is Class II lamps and laterns,more safe and reliable.

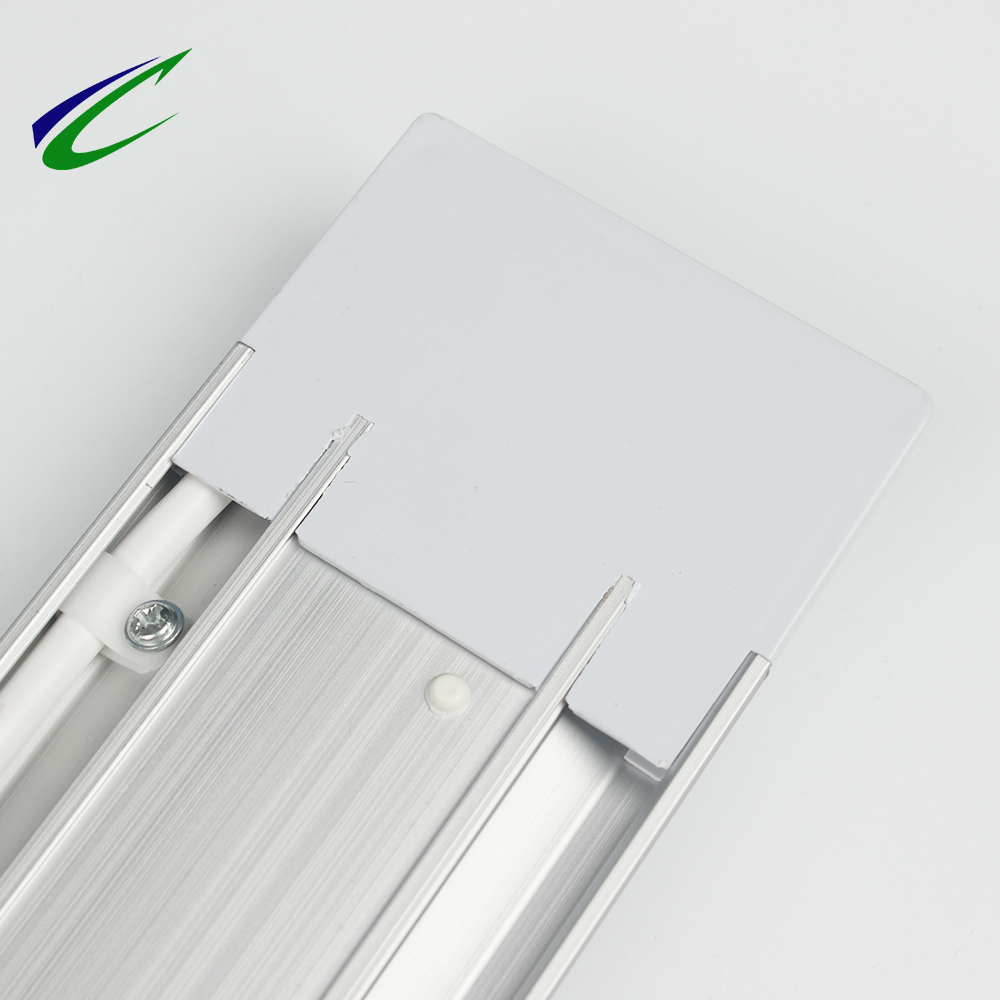

- The main material for aluminium lamp body ,6063 to ensure that the LED heat dissipation performance.

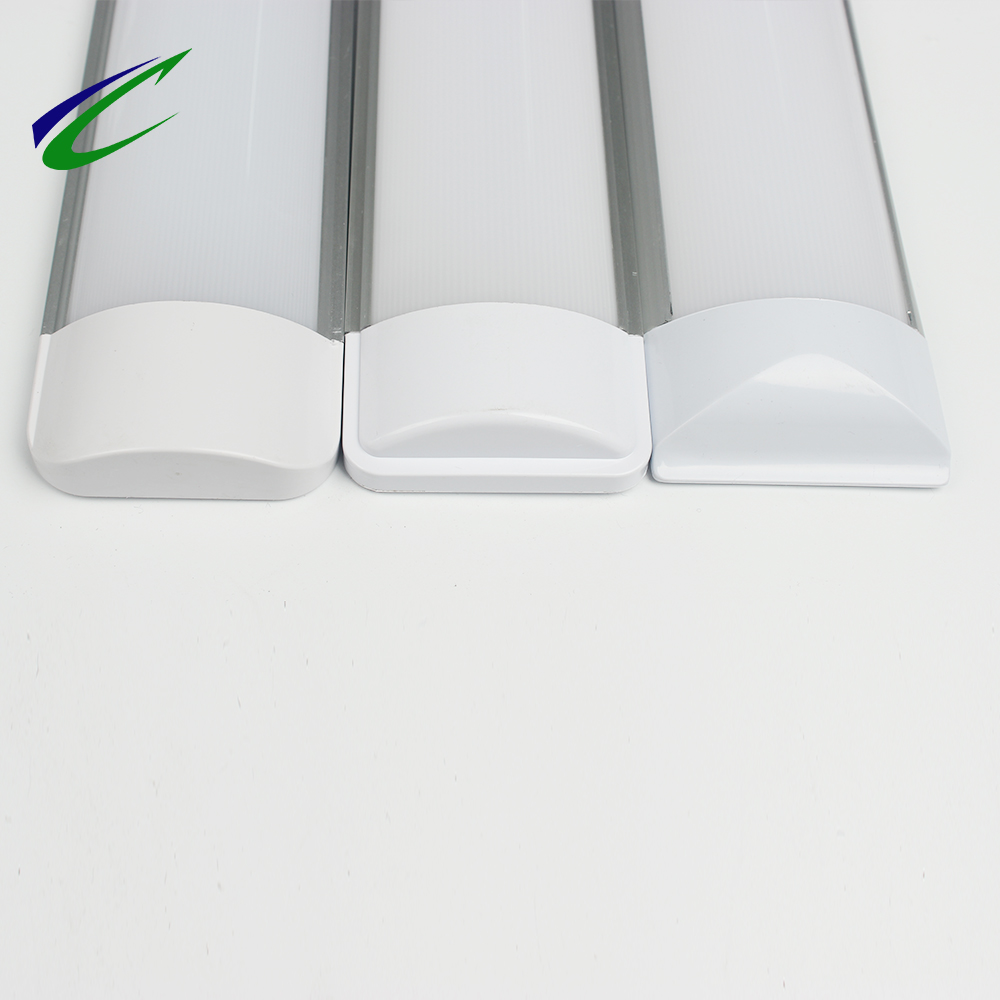

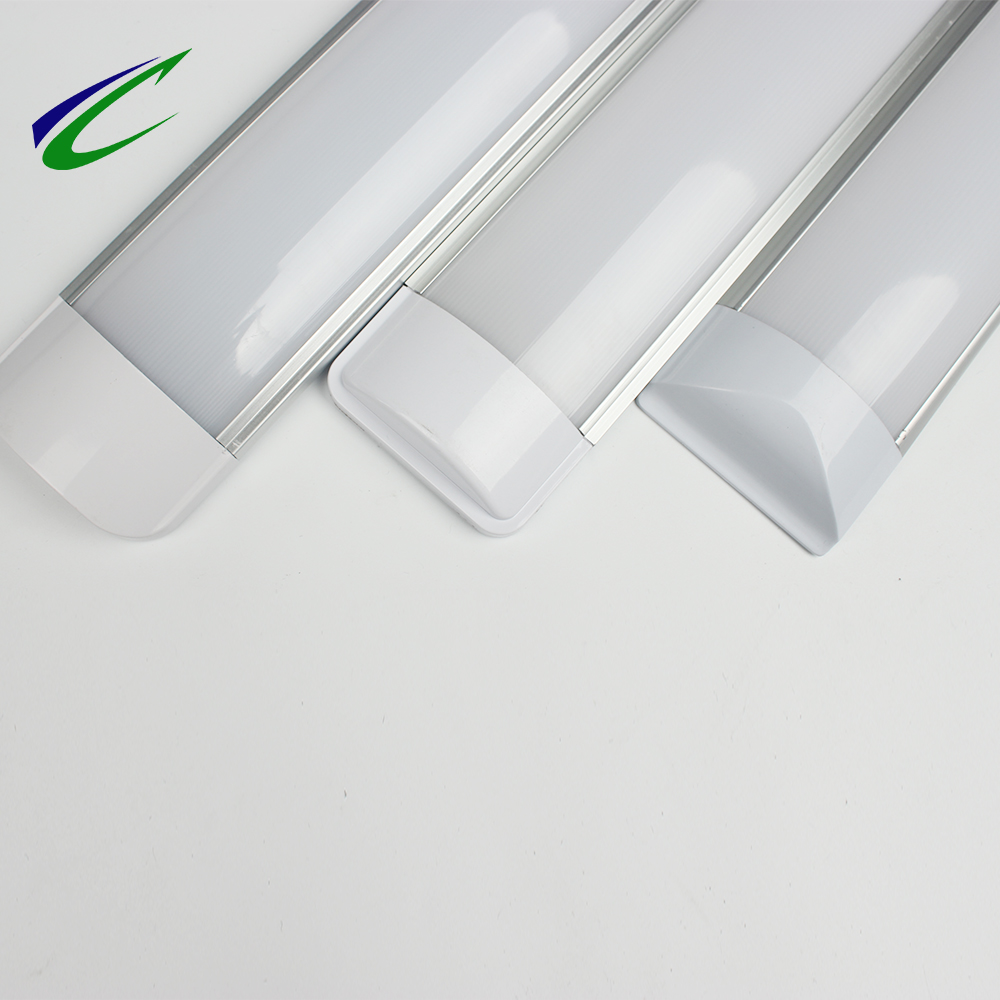

- Two different function for choosing.Three different size for choosing.Tri-colour or linkable function.


Application:


- Car parks,lndustrial area,office,Corridors,Supermarkets and Shops,Bakeries,Storage area and etc.

25


Specification:


Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W/TRI 2ft 18W 3000K&4000K&5000K 110lm/w 192 600*85*29mm
DY-LED27W/TRI 3ft 27W 3000K&4000K&5000K 110lm/w 228 900*75*29mm
DY-LED36W/TRI 4ft 36W 3000K&4000K&5000K 110lm/w 288 1200*85*29mm
DY-LED45W/TRI 5t 45W 3000K&4000K&5000K 110lm/w 480 1500*85*29mm
DY-LED55W/TRI 6ft 55W 3000K&4000K&5000K 110lm/w 576 1800*85*29mm







Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W 2ft 18W 2700-6500K 110lm/w 96 600*75*23mm
DY-LED27W 3ft 27W 2700-6500K 110lm/w 144 900*75*23mm
DY-LED36W 4ft 36W 2700-6500K 110lm/w 184 1200*75*23mm
DY-LED45W 5t 45W 2700-6500K 110lm/w 240 1500*75*23mm
DY-LED55W 6ft 55W 2700-6500K 110lm/w 288 1800*75*23mm
0.6 1 0.6
