LED panel exit sign box

Availability:

Quantity:



Inquire Add to Basket

Model:
DYESK0105L80
Brand:
OEM
Code:
9405409000

Product Description

D&Y LED Emergency Exit Sign。。。。

D&Y LED Emergency Exit Sign

D&Y LED Emergency Exit Sign..

▼ Standard/Self-test

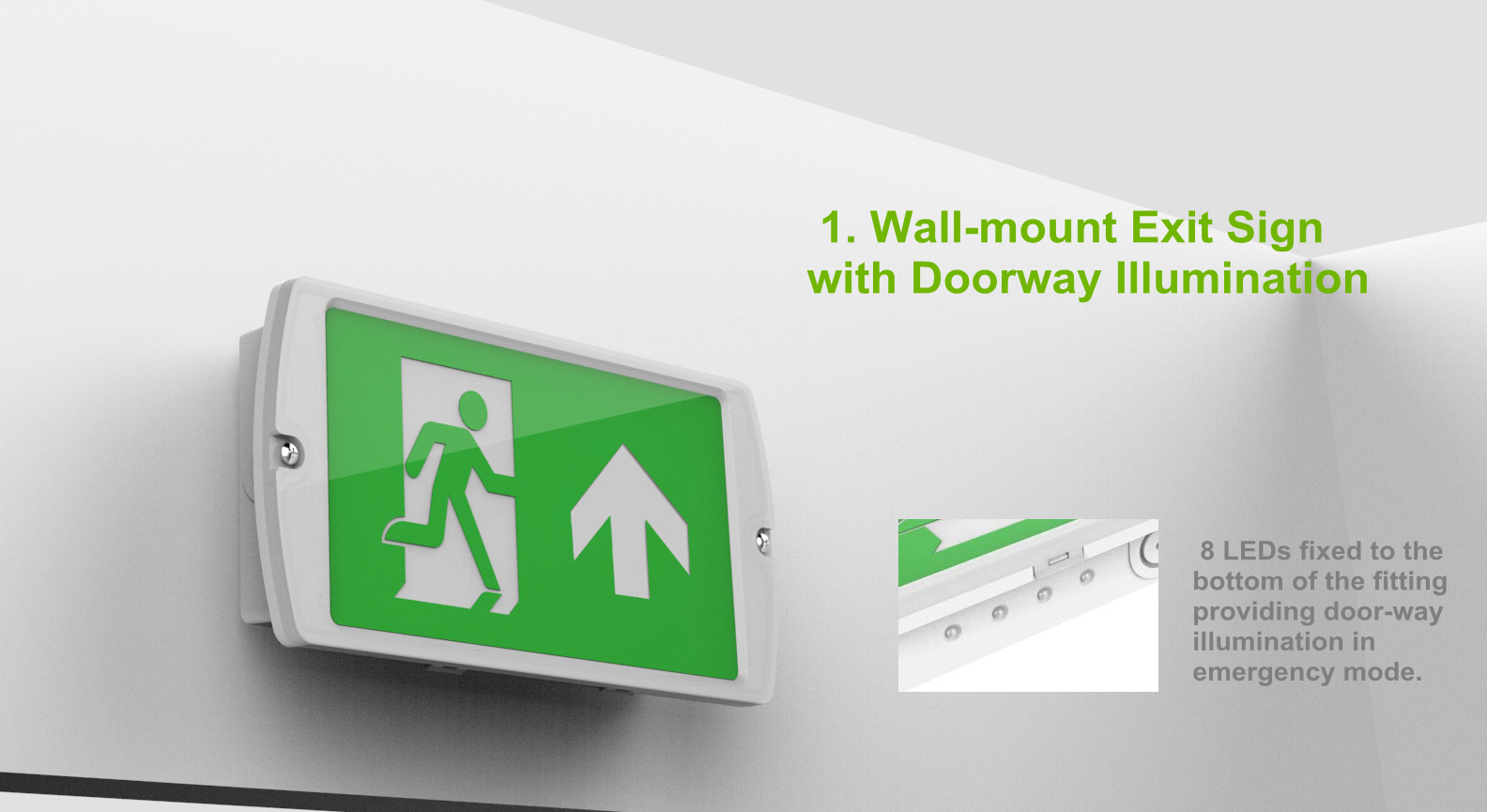

IP65 multi-purpose emergency exit bulkhead

1.Used as emergency exit sign as well as emergency light

2.Maintained and non-maintained option

3.Surface and recessed mounting positions

4.Hanging exit sign plate available

5.IP65 and IK10 (vandal resistant) for external uses

6.BESA box fitting points

▼ General Specification

● Input Voltage: AC220-240V 50-60Hz

● Input Current (max): 52mA

● Life Time: 40,000h

● Emergency Conversion Time: 1S

● Emergency Operation Time: 3h

● Charging Time: 12h

● Battery Life: 4 Years

● Ambient Temp: -10°C to 40°C

●Maximum Case Temp: 75°C

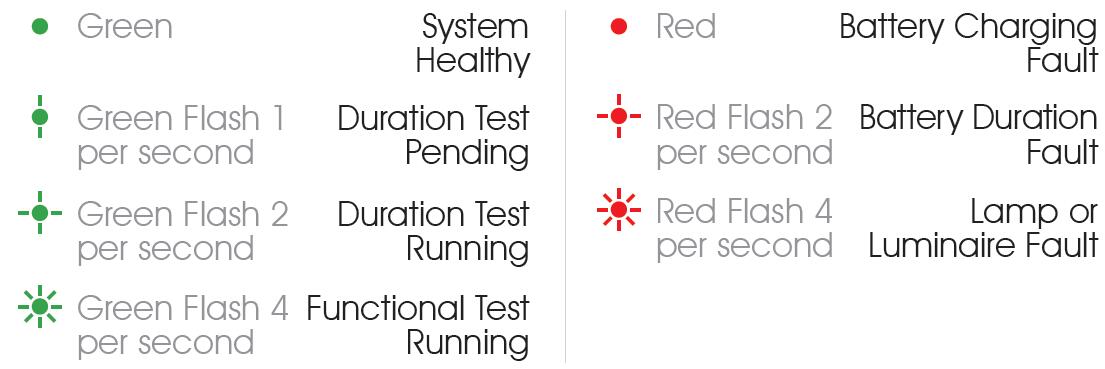

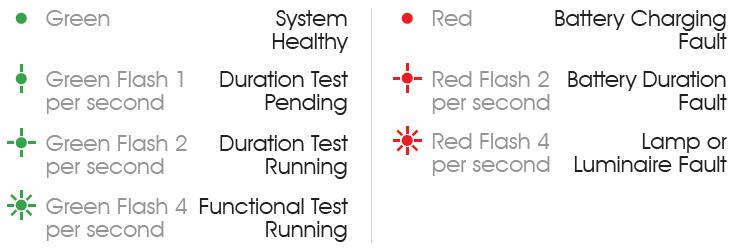

▼ LED Indicator (Self-test version)

QQ截图20220422095849

▼ Standard (Exit sign up included)

Item Code	Input Power (max)	Emergency Output Power	CCT	Lumen
DYESCN06W60	6W	3W	6500K	60lm (Emergency) 150lm (Lighting)

▼ Self-test (Exit sign up included)

Item Code	Input Power (max)	Emergency Output Power	CCT	Lumen
DYESCN06W40	6W	3W	6500K	40lm (Emergency) 130lm (Lighting)

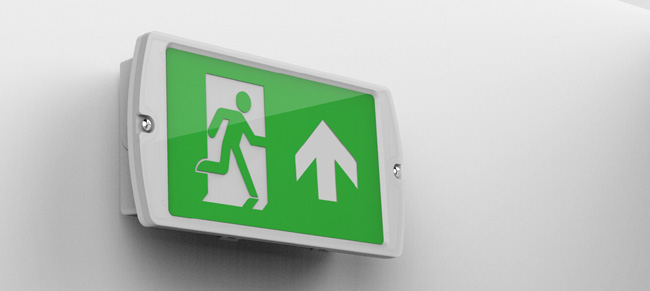

▼ Wall-mount

Wall-mount

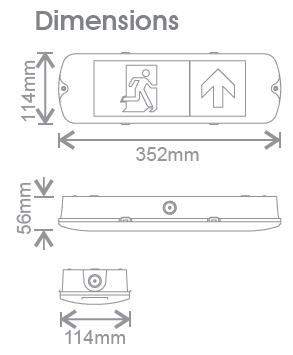

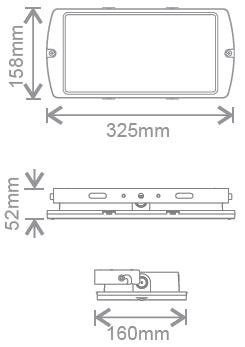

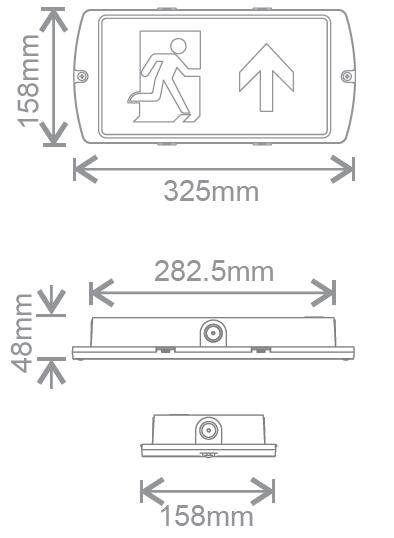

Dimensions

Accessories (Wall-mount)

Item Code	Description
DYESCN06W-L	Exit Sign Left
DYESCN06W-R	Exit Sign Right
DYESCN06W-D	Exit Sign DownEmergency

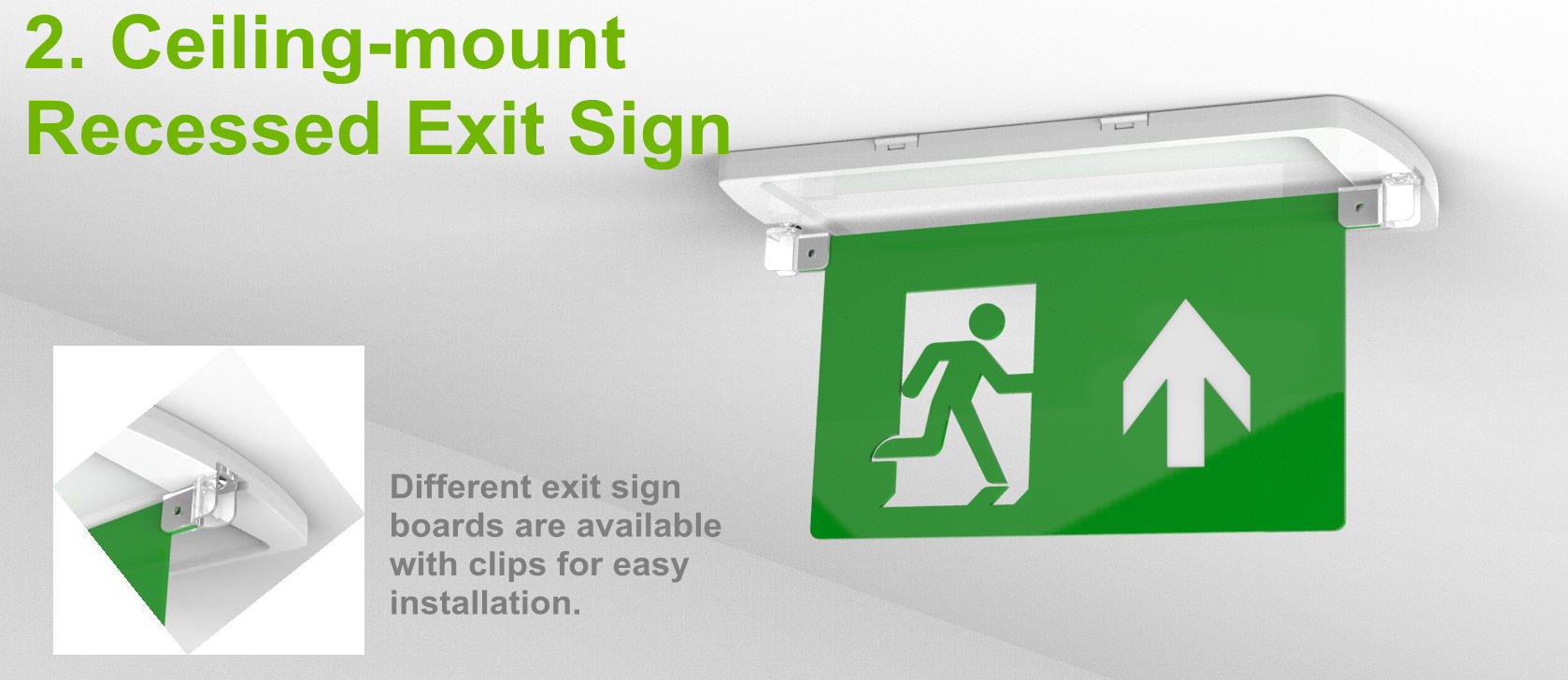

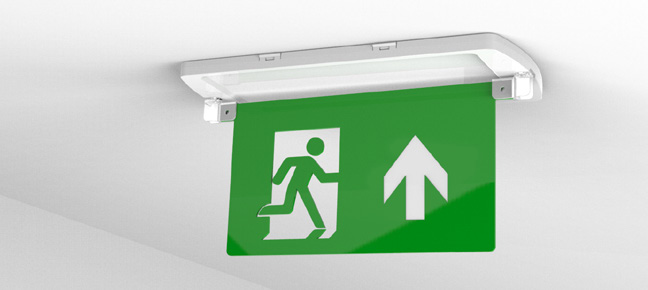

▼ Recessed ceiling-mount

Recessed

ceiling-mount

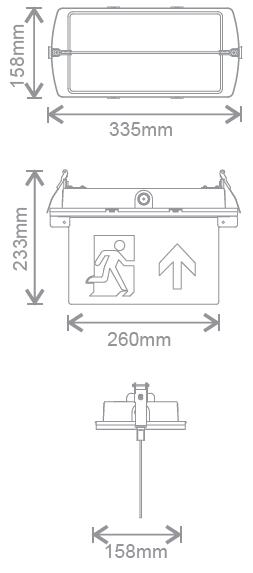

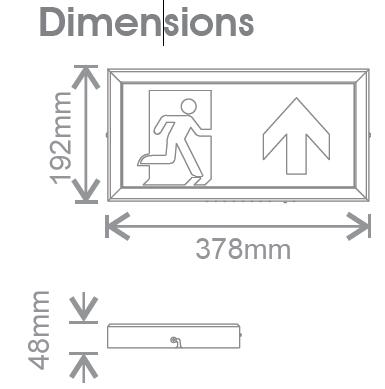

Dimensions

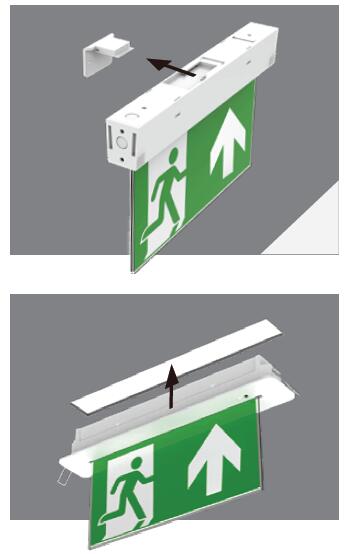

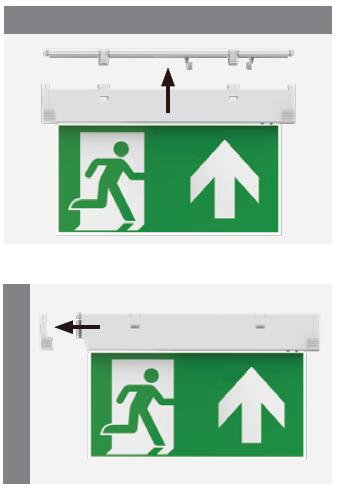

Accessories (Recessed ceiling-mount)

Item Code	Description
DYESCN06R	Spring clips for recessed installation

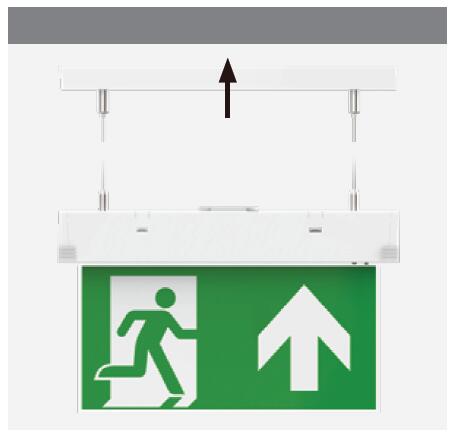

DYESCN06R-LR	Hanging Exit Sign Left & Right
DYESCN06R-U	Hanging Exit Sign Up
DYESCN06R-D	Hanging Exit Sign Down

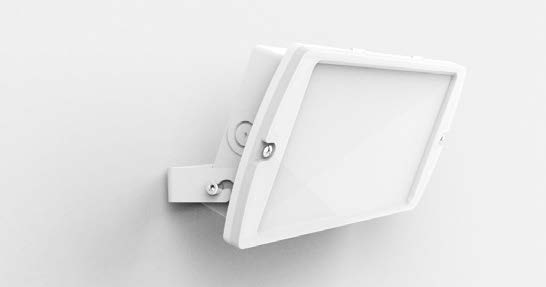

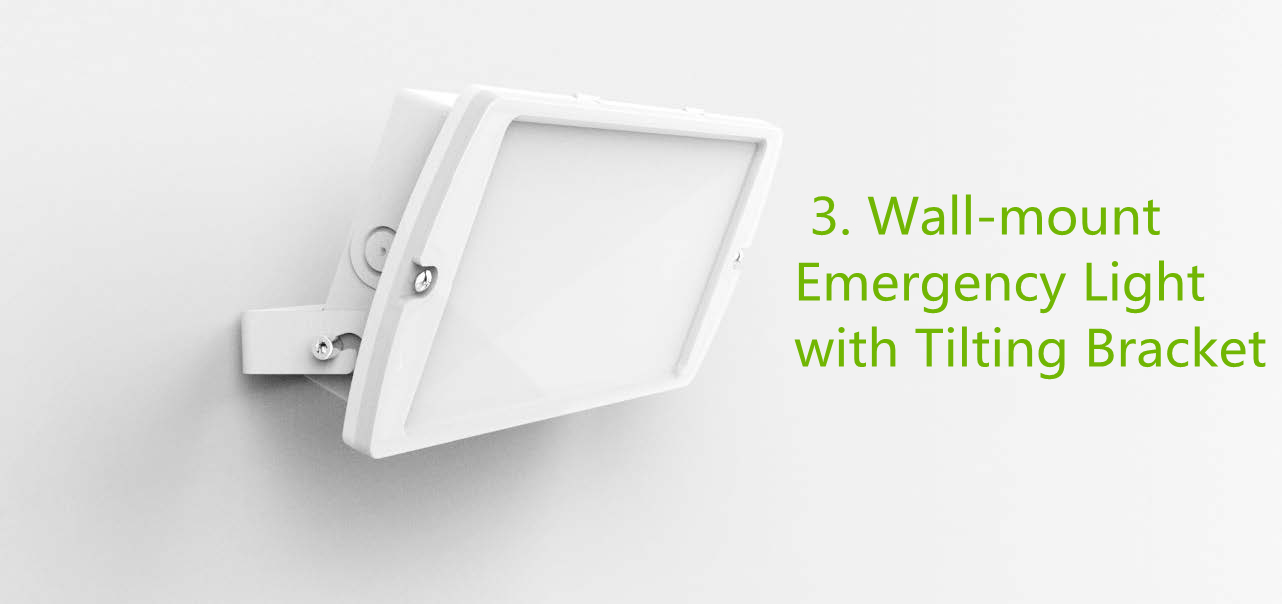

▼ Tilt wall-mount

Tilt wall-mount

Dimensions

Accessory (Tilt wall-mount)

Item Code	Description
DYESCN06TW-BR	Wall-mount tilting bracket

▼ Standard/Self-test

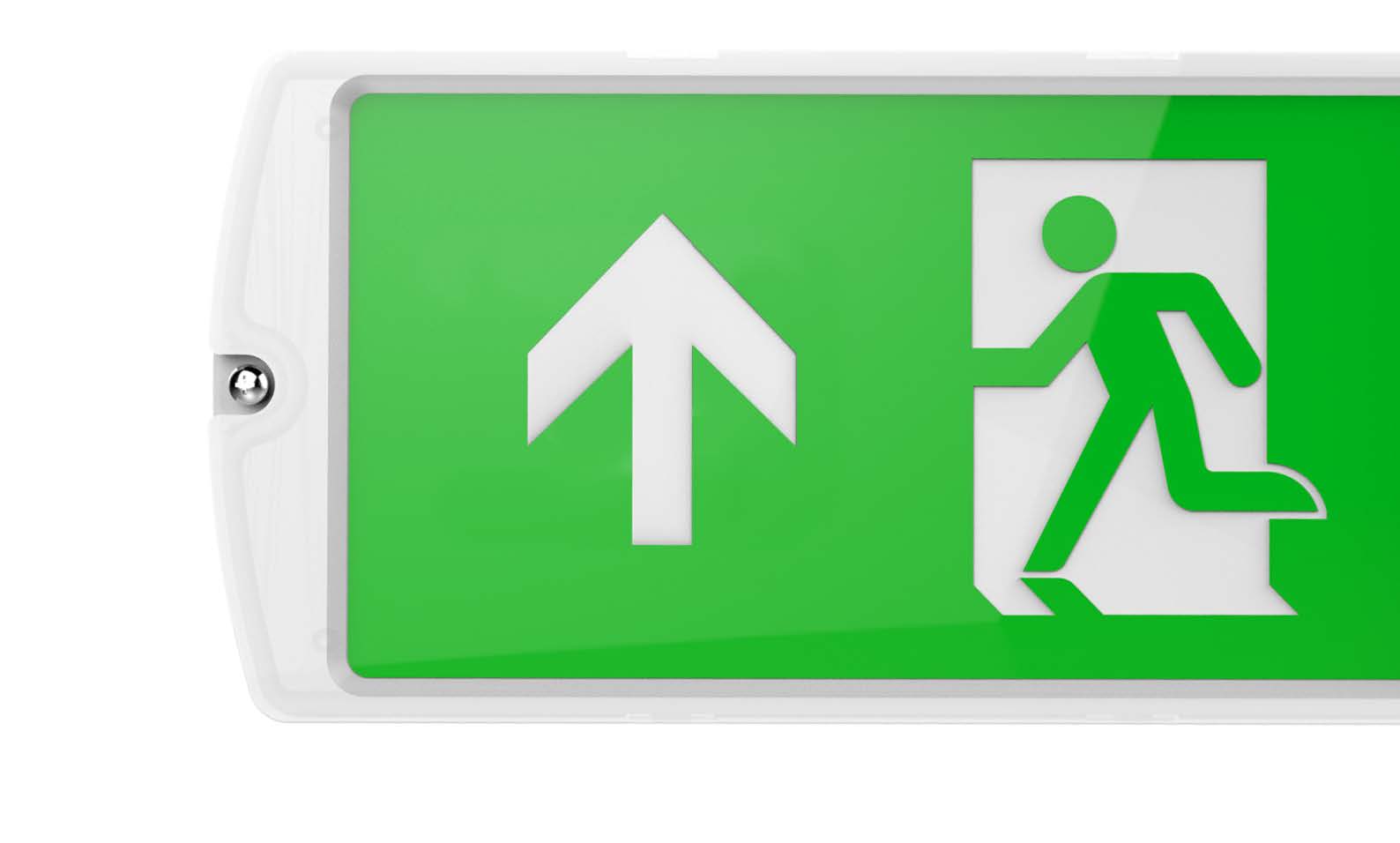

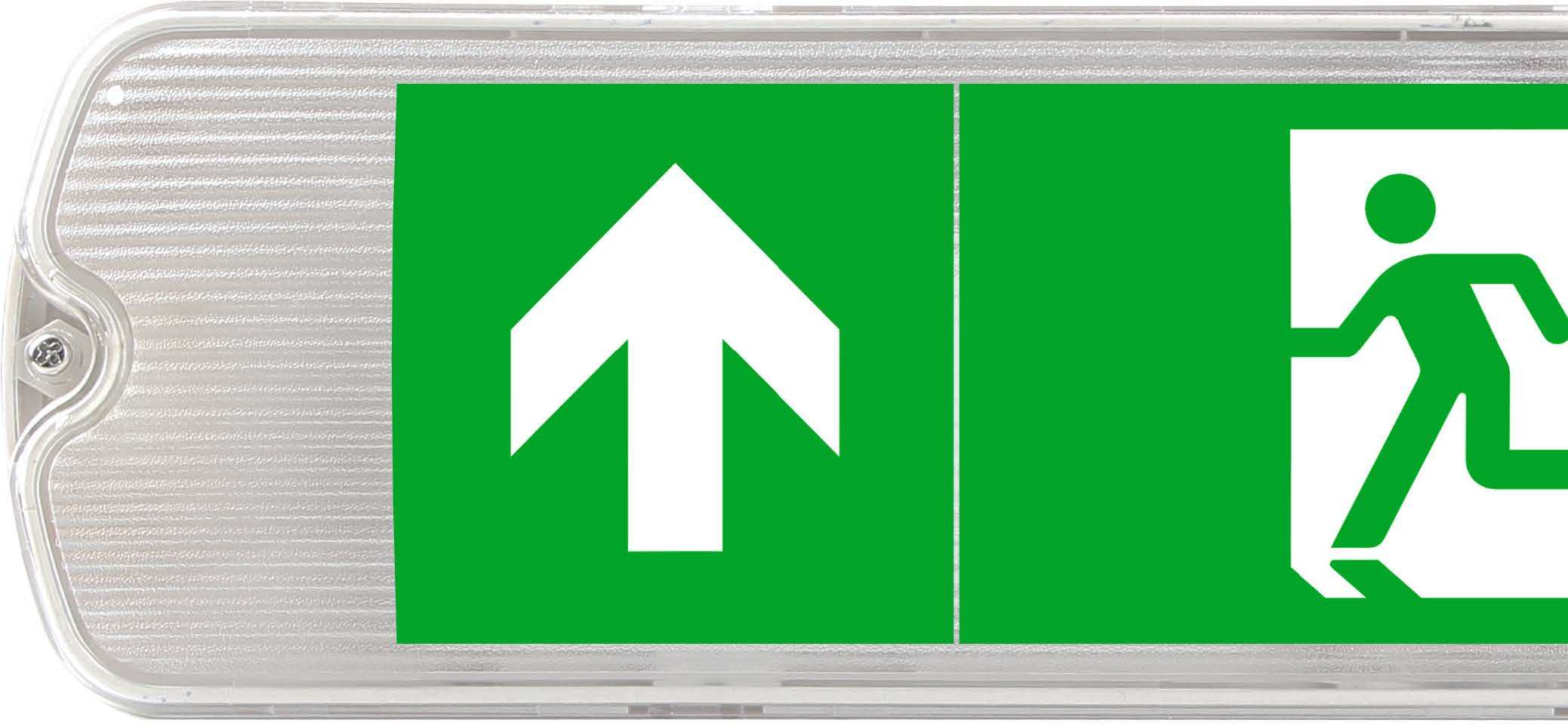

IP65 LED emergency exit sign bulkhead

● All legends included

● Maintained and non-maintained option

● 20mm Conduit entry

● IP65 and IK10 (vandal resistant) for internal & external uses.

● Dual entry push-wire terminal block for easy loop-in loop-out wiring

● Available in self-test version

● BESA box fitting points

▼ LED Indicator (Self-test version)

General Specification

Input Voltage: 220-240Vac 50-60Hz

Input Current (max): 46mA

Life Time: 40,000h

Emergency Conversion Time: 1S

Emergency Operation Time: 3H

Charging Time: 12H

Battery Life: 4 Years

Ambient Temp: -10°C to 40°C

Maximum Case Temp: 75°C

▼ Standard (All exit legends included)

Item Code	Input Power (max)	Emergency Output Power	CCT	Lumen
DYESM0105L70	5W	1W	6500K	70lm
DYESM0105L40-BLK	5W	1W	6500K	40lm

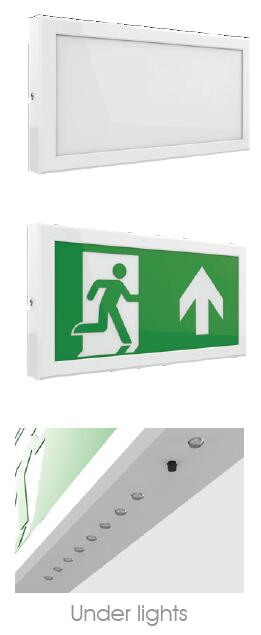

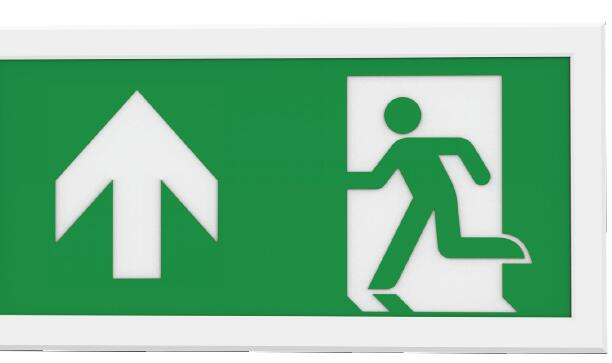

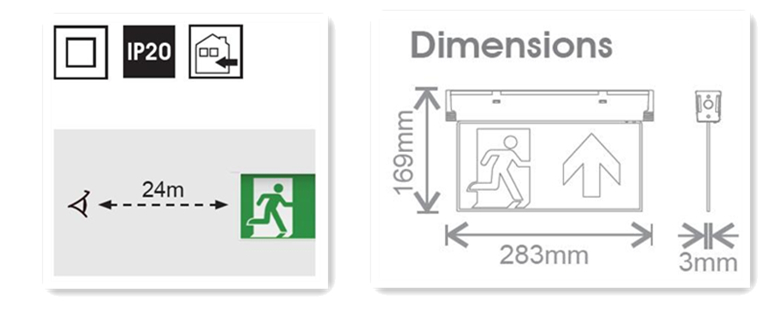

▼ LED panel exit sign box

● Slim profile LED panel

● Uniform back light

● Hidden slot at the frame for attaching exit sign film

● Maintained and non-maintained options

● Available in self-test version

General Specification

Input Voltage: 220-240Vac 50-60Hz

Input Current (max): 53mA

Life Time: 40,000h

Emergency Conversion Time: 1S

Emergency Operation Time: 3H

Charging Time: 24H

Battery Life: 4 Years

Ambient Temp: 0°C to 40°C

Maximum Case Temp: 75°C

▼ LED Indicator (Self-test version)

▼ Standard (Exit sign up included)

Item Code	Input Power (max)	Emergency Output Power	CCT	Lumen
DYESK0105L80	5W	1W	6500K	80lm

▼ Accessories

Item Code	Description
DYESK0105-LR	Exit Sign Left/Right
DYESK0105-D	Exit Sign Down

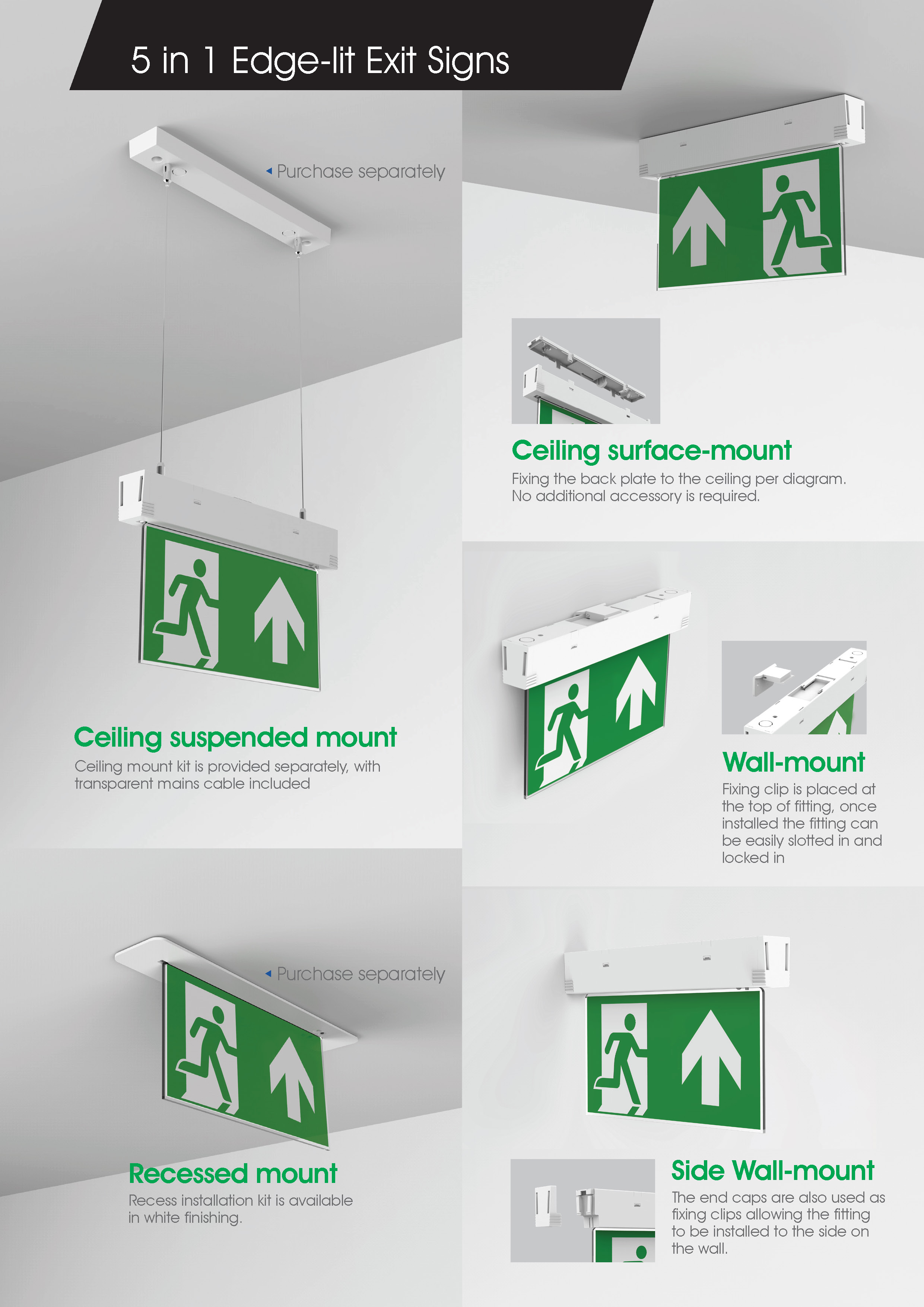

▼5 in 1 Edge-lit Exit Signs

D&Y LED Emergency Exit Sign._页面_6

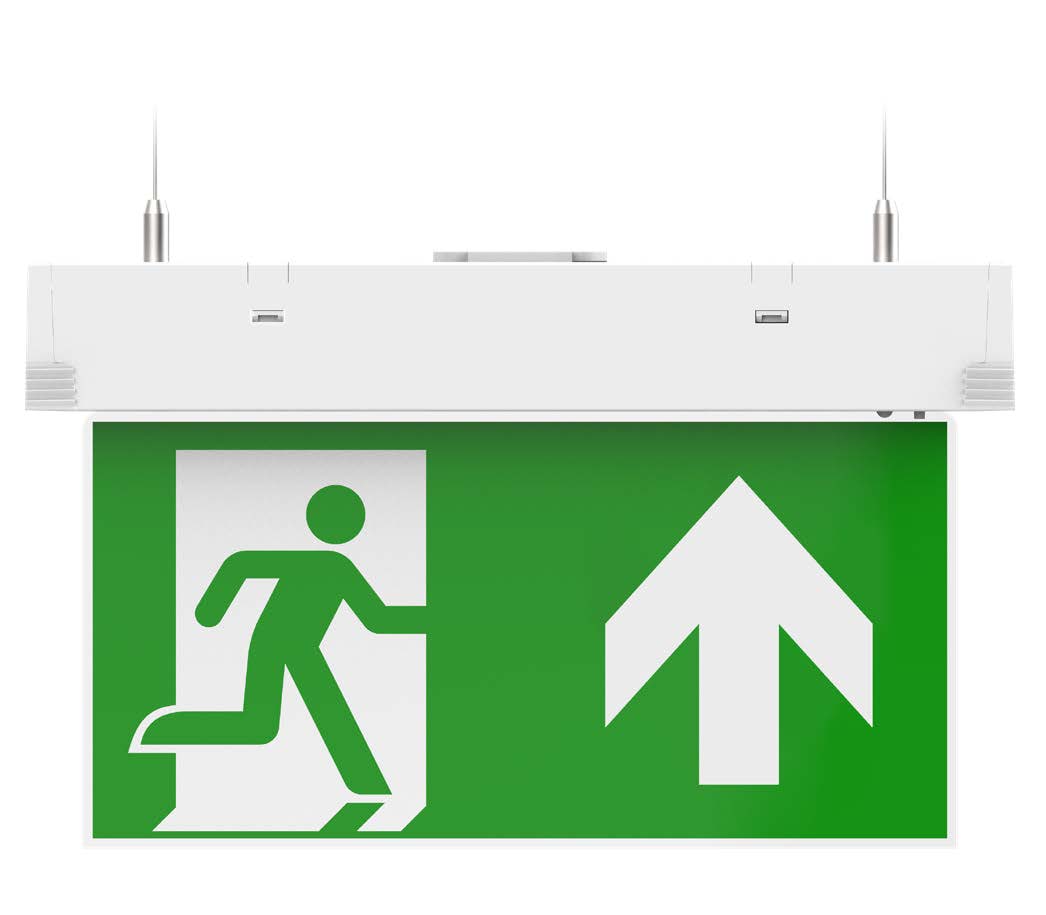

▼ Exit sign with multiple mounting positions

General Specification

Input Voltage: 220-240Vac 50-60Hz

Input Current (max): 30mA

Life Time: 40,000h

Emergency Conversion Time: 1S

Emergency Operation Time: 3H

Charging Time: 24H

Battery Life: 4 Years

Ambient Temp: 0°C to 40°C

◆ 5 mounting positions

◆ Integrated mounting clips

◆ Maintained or non-maintained operation

◆ Different exit sign plates available

◆ Available in self-test version

▼Standard (Exit sign up included)

Item Code	Input Power (max)	Emergency Output Power	CCT	Lumen
DYESD0103SUS	3W	1W	6500K	30lm (Emergency) 50lm (Lighting)

▼ Accessories

Item Code	Description
DYESD0103SUS-LR	Exit Sign Left/Right
DYESK0105-D	Exit Sign Down
DYESD0103SUS-SUS	Suspension kit
DYESD0103SUS-REC/WHT	Recessed kit, white
