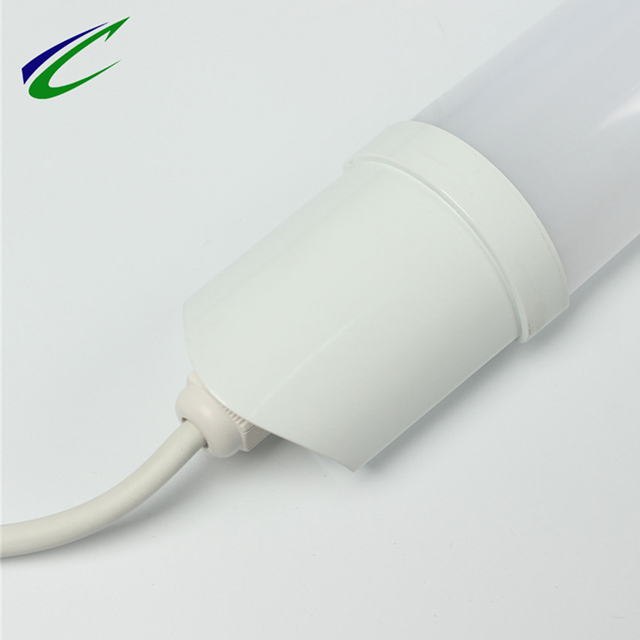

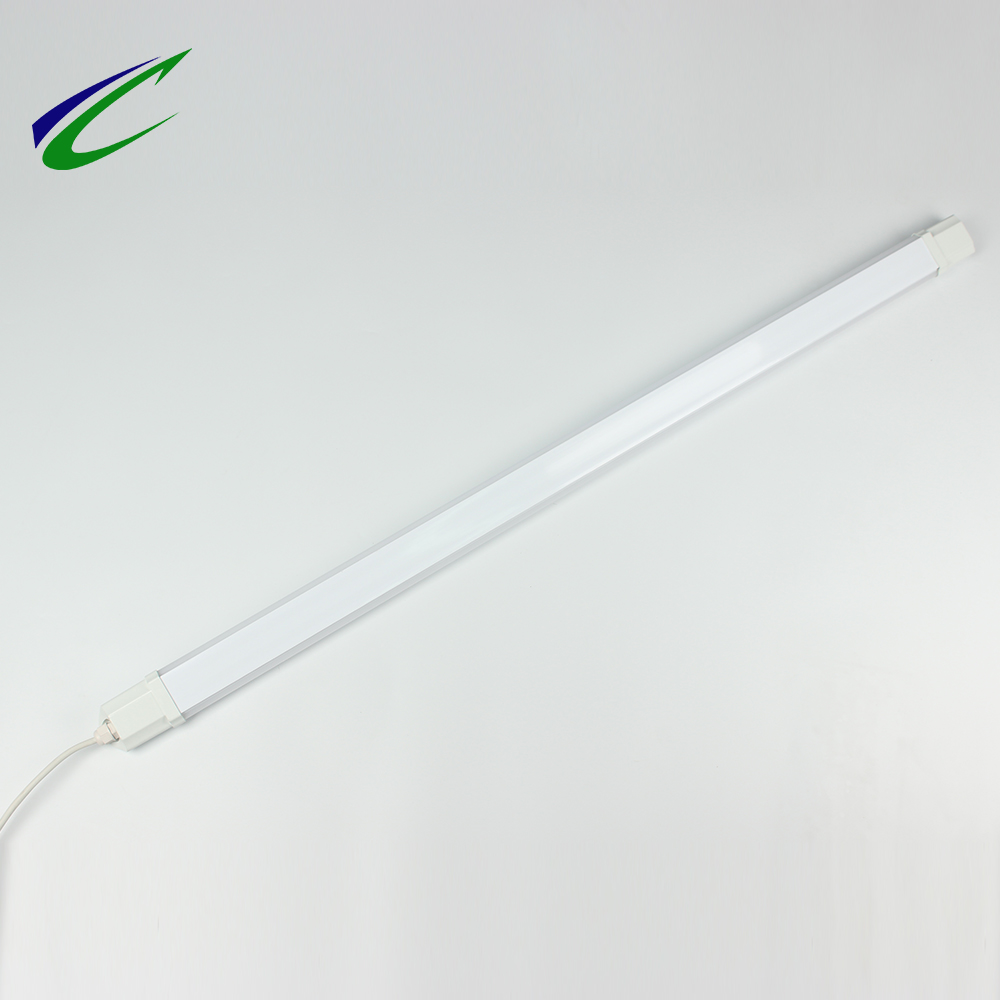

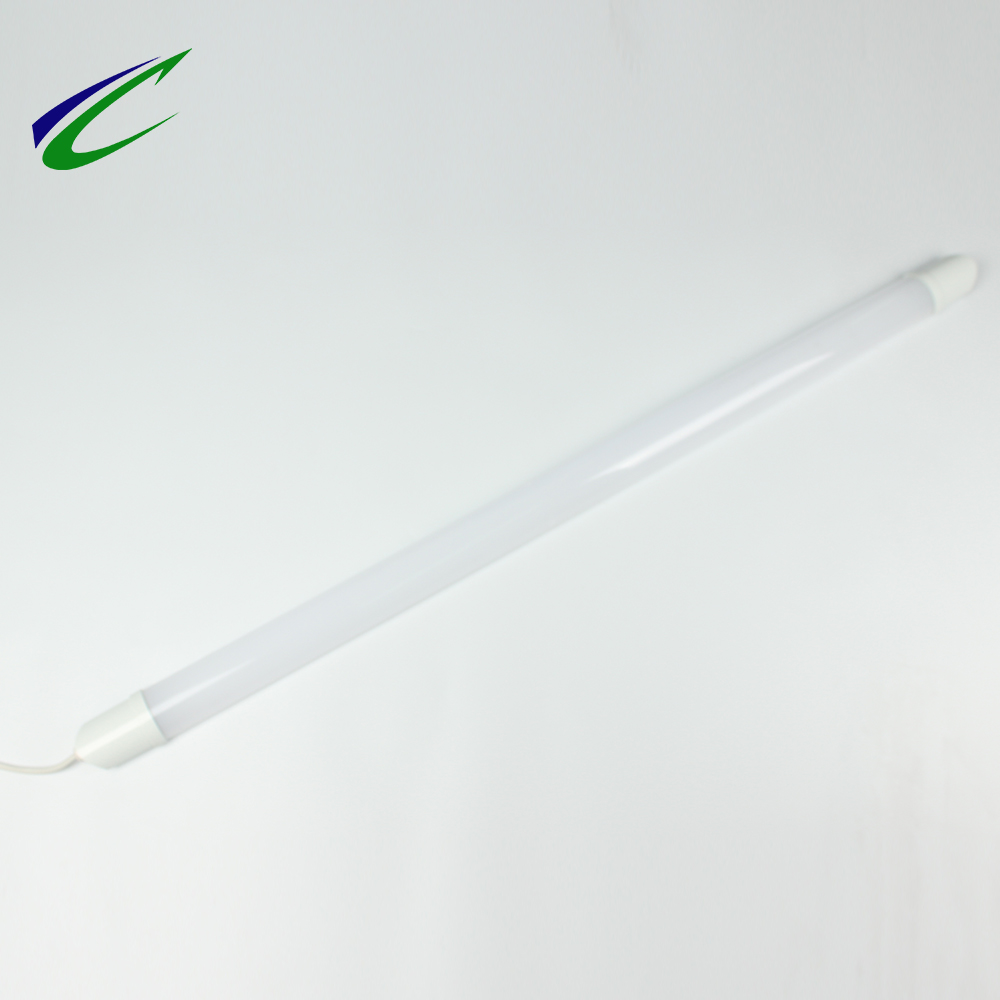

LED Strip Light 1.2m LED Linear Lighting T8 Tri Proof Lamp Tunnel Light

Availability:
Quantity:
  • DY-3012-SMD36W

  • OEM

  • 9405409000

details_01details_02

FEATURES


1. Two color extrusion for PC housing and PC cover. offering IP65 protection against moisture and dust, and an impactrating of lk08, inside 6063 aluminium reflector

2. Integrated design without clips ensure electrical safety

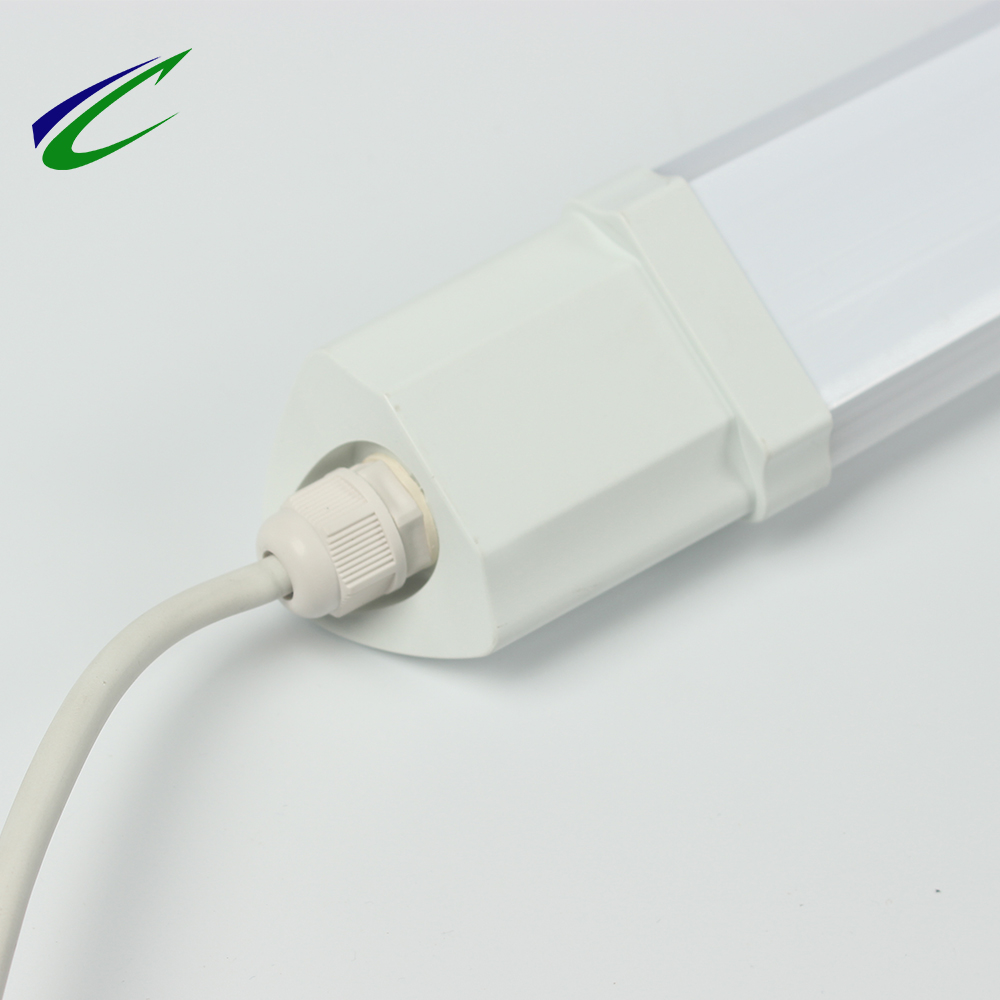

3. Easy for wire connection at one end side of the fitting

4. LED based provides energy efficient solution and reduces maintenance costs



Application

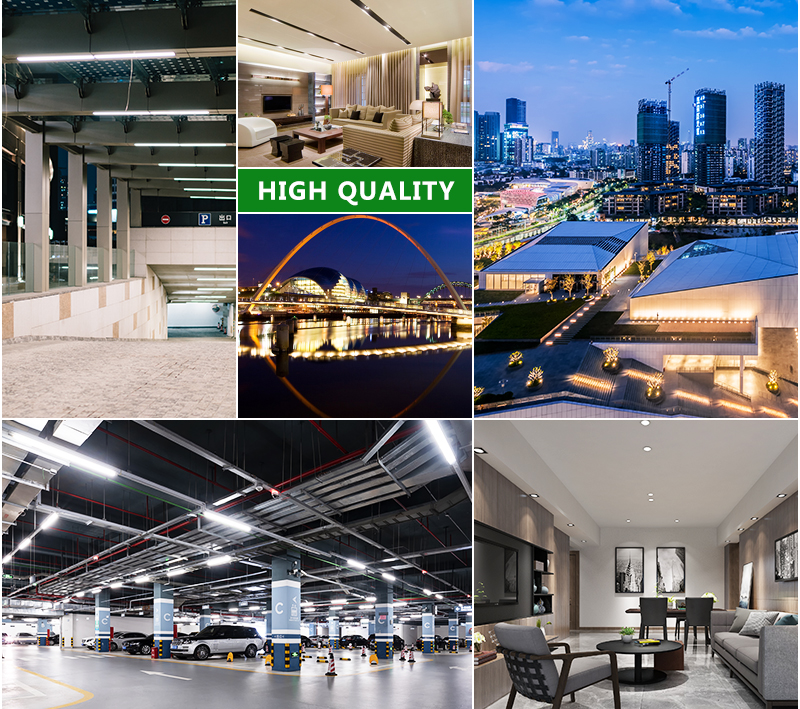

Car parks, Industrial areas. Offices, corridors. Supermarkets and shops. Bakeries. Storage areas etc

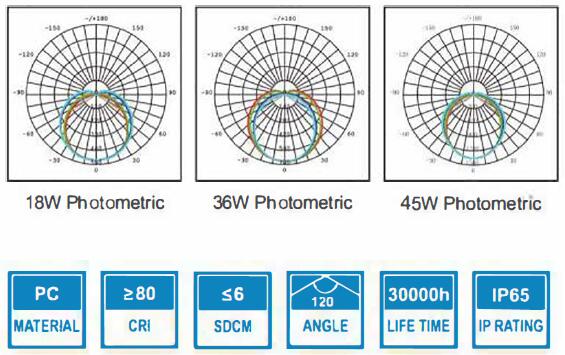

14



Specification





Model Voltage/frequency Power CCT Lumen Dimension
DY-3006-SMD18W 220-240V ~ 50/60Hz 18W 2700-6500K 1620lm 635*63*38mm
DY-3012-SMD36W 220-240V ~ 50/60Hz 36W 2700-6500K 3240lm 1235*63*38mm
DY-3015-SMD45W 220-240V ~ 50/60Hz 45W 2700-6500K 4050lm 1535*63*38mm



details_12details_13details_18details_19details_20details_21
