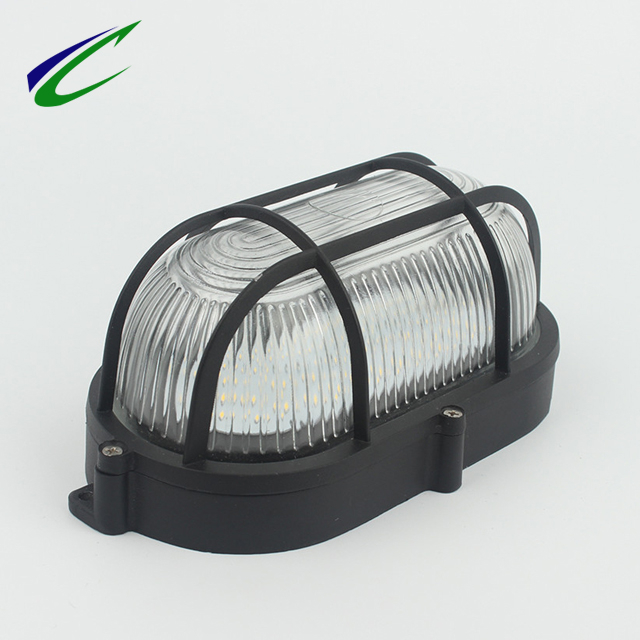

IP65 9W black LED Bulkhead Lamp 4000K glass cover PC base

Availability:
Quantity:
Inquire Add to Basket

20



 â–¼Aluminum Die Casting Base



FEATURES


1. Transparent or frosted glass and clear or milky PC for option.

2. IP grade can reach IP65.

3. With the advantange of energy conservation and environment protection.


Application


Building, elevated bridge,country, house, garden courtyard villas,bathroom and so on.


QQ截图20220421112611


Specification




Specifications DY-FC190TG-5W DY-FC190TG-7W DY-FC190TG-9W DY-FC190TG-12W
DY-FC190TP-5W DY-FC190TP-7W DY-FC190TP-9W DY-FC190TP-12W
Material Al Al Al Al
IP Rating IP65 IP65 IP65 IP65
Power 5W 7W 9W 12W
Input Voltage 90-265 90-265 90-265 90-265
Luminous Efficiency 90-100 90-100 90-100 90-100
CRI 70-80 70-80 70-80 70-80
Color Temp 2700-7000 2700-7000 2700-7000 2700-7000
Beam Angle 170 170 170 170
Environment Temperature -25~45 -25~45 -25~45 -25~45
Lifespan 40000 40000 40000 40000
Colour White/Black White/Black White/Black White/Black

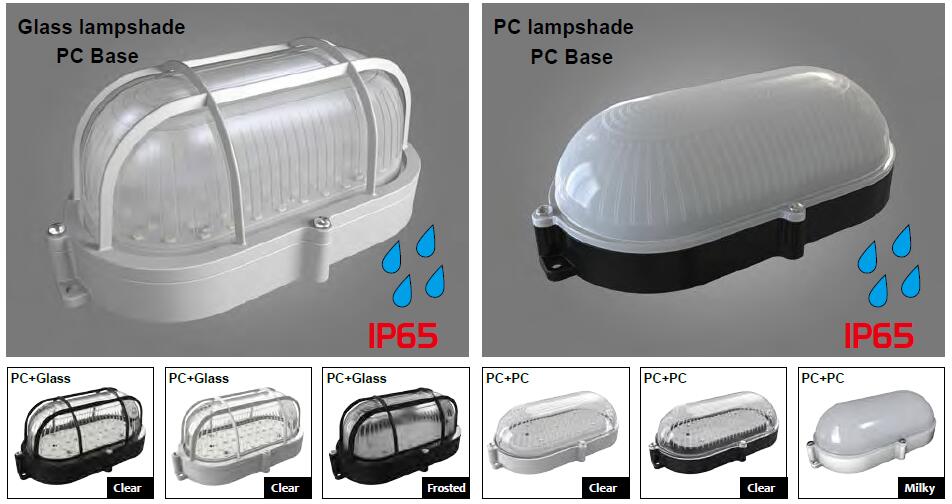

â–¼ PC Base


73


FEATURES


1. Transparent or frosted glass and clear or milky PC for option.

2. IP grade can reach IP65.

3. With the advantange of energy conservation and environment protection.


Application


Building, elevated bridge,country, house, garden courtyard villas,bathroom and so on.


3



Specification




Specifications DY-FC188A-P 5W DY-FC188B-P 7W DY-FC188E-P 9W
DY-FC188C-P 5W DY-FC188D-P 7W DY-FC188F-P 9W
Material PC PC PC
IP Rating IP65 IP65 IP65
Power 5W 7W 9W
Input Voltage 90-265 90-265 90-265
Luminous Efficiency 90-100 90-100 90-100
CRI 70-80 70-80 70-80
Color Temp 2700-7000 2700-7000 2700-7000
Beam Angle 170 170 170
Environment Temperature -25~45 -25~45 -25~45
Lifespan 40000 40000 40000
Colour White/Black White/Black White/Black




details_18details_19details_20details_21
