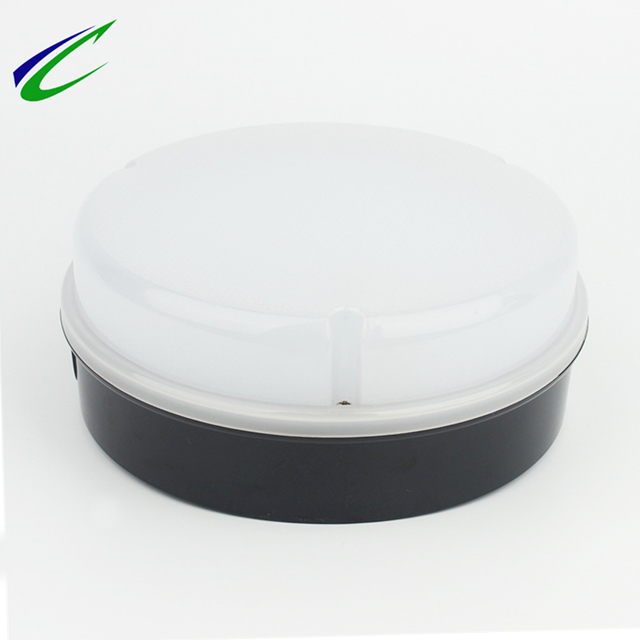

Ceiling Lamp PC material 8W /14W

details_01 details_02

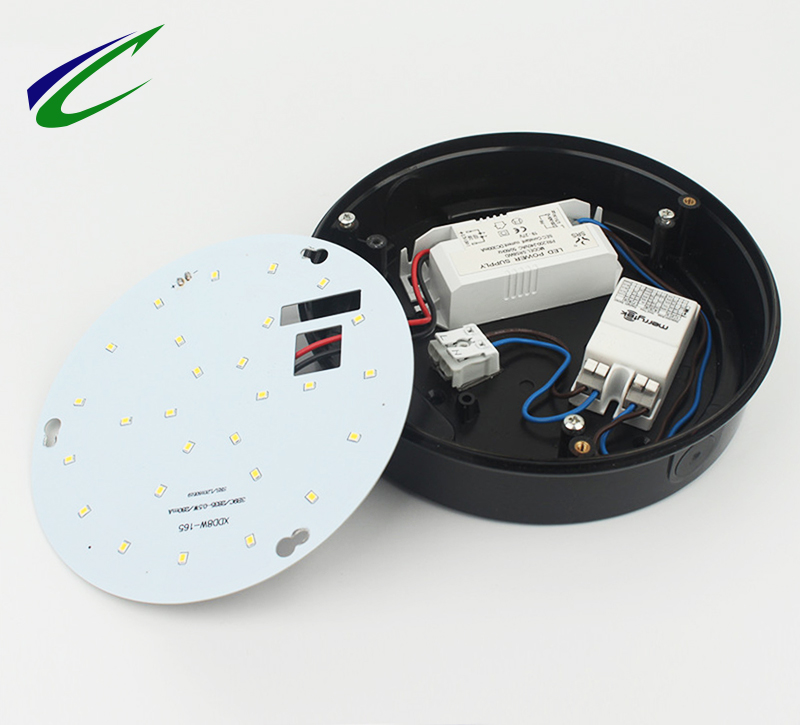

details_05

FEATURES

1.Suitable for outside using and in the rate of IP66.

2.Both of cover and housing area in function of mounting.

3.With high quality of PC materials and reach of IP66.

APPLICATION

Car parks,industrial areas,Offices,corridors,Supermark and shops,Bakeries,Storage and etc.

QQ截图20220420152815

SPECIFICATION

Model	Power	CCT	Lumen	RA	IP Rating	Dimension
DY-3013S	8W	3000-6000K	728lm	RA≥80	IP54	20020092mm
DY-3013L	14W	3000-6000K	1274lm	RA≥80	IP54	282282100mm
DY-3014S	8W	3000-6000K	728lm	RA≥80	IP54	20020092mm
DY-3014L	14W	3000-6000K	1274lm	RA≥80	IP54	25225292mm

Model	Power	CCT	Lumen	RA	IP Rating	Dimension

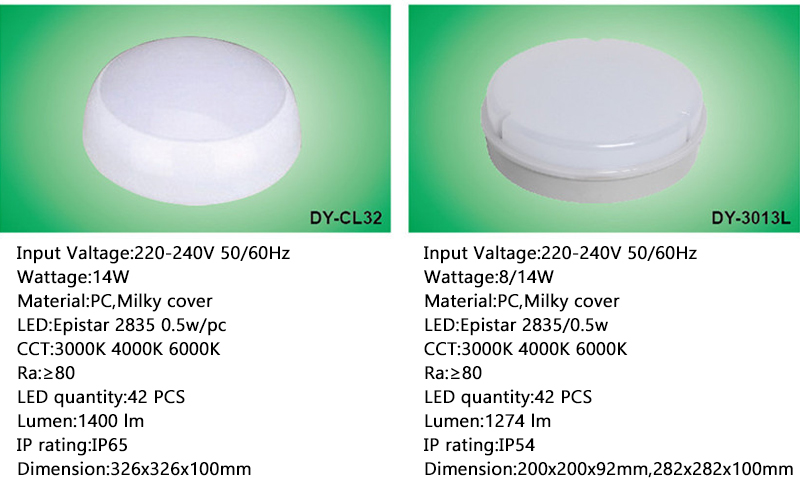

DY-CL32	14W	3000-6000K	1400lm	RA≥80	IP65	326326100mm

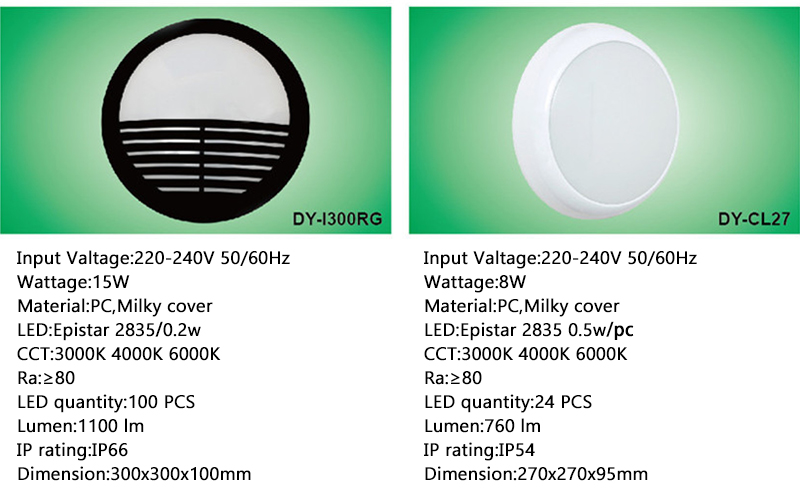

DY-CL27	8W	3000-6000K	760lm	RA≥80	IP54	27027095mm

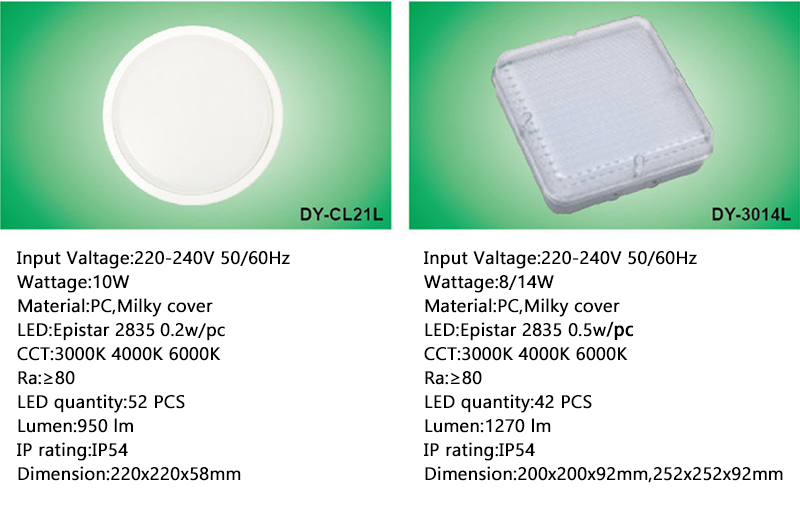

DY-CL21L	10W	3000-6000K	950lm	RA≥80	IP54	22022058mm

Model	Power	CCT	Lumen	RA	IP Rating	Dimension

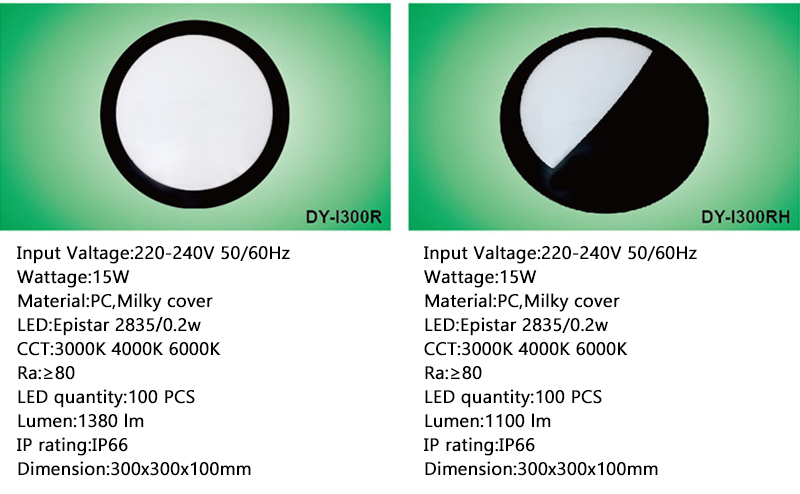

DY-1300R	15W	3000-6000K	1380lm	RA≥80	IP65	300300100mm
DY-1300RH	15W	3000-6000K	1100lm	RA≥80	IP65	300300100mm
DY-1300RG	15W	3000-6000K	1100lm	RA≥80	IP65	300300100mm
DY-1350R	25W	3000-6000K	2300lm	RA≥80	IP65	350350100mm
DY-1400R	30W	3000-6000K	2800lm	RA≥80	IP65	400400100mm

details_11 details_12 details_13 details_14 details_15 details_16 details_17 details_18 details_19 details_20 details_21
