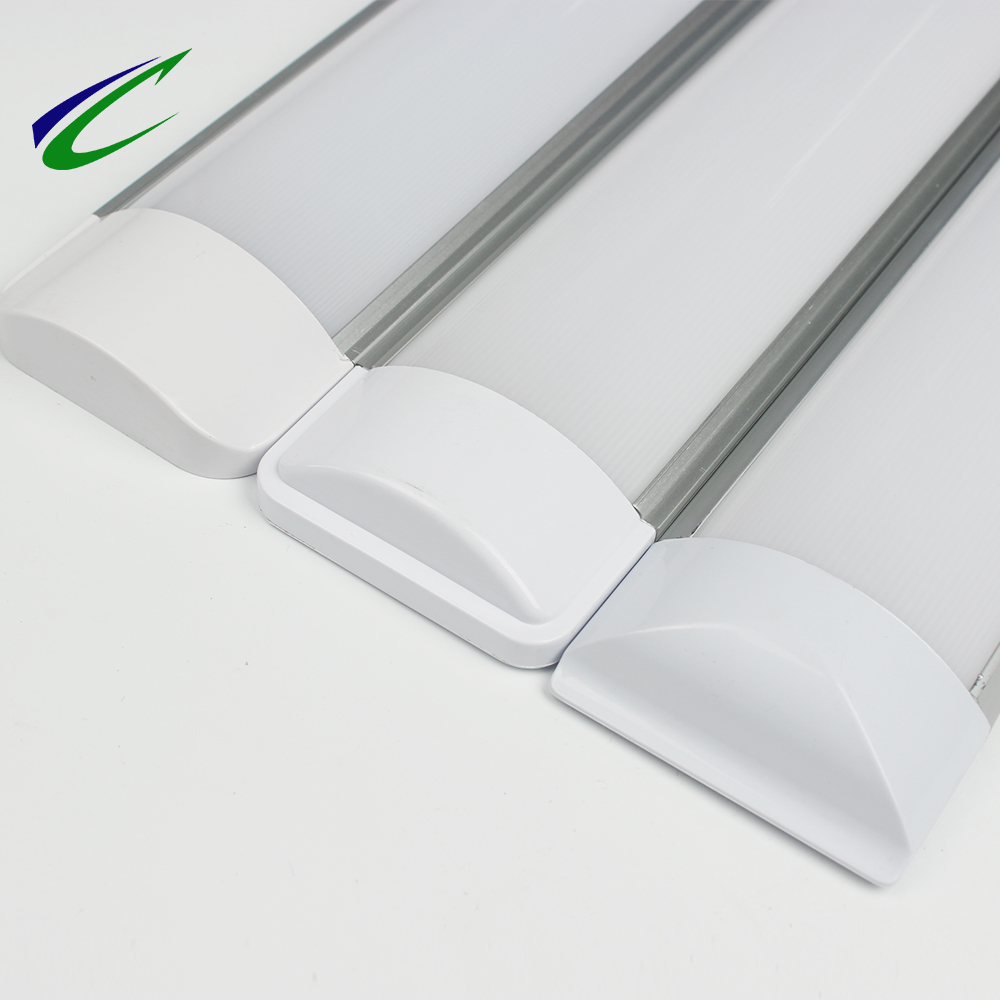

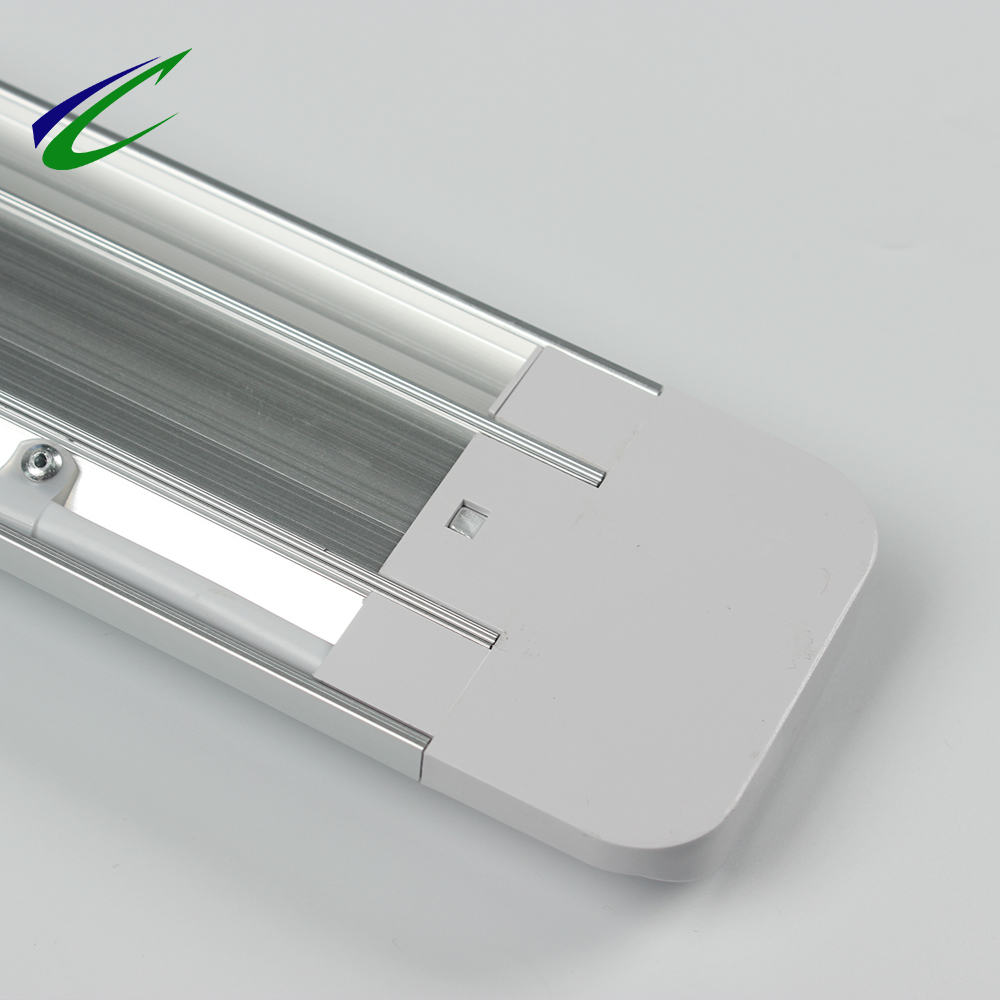

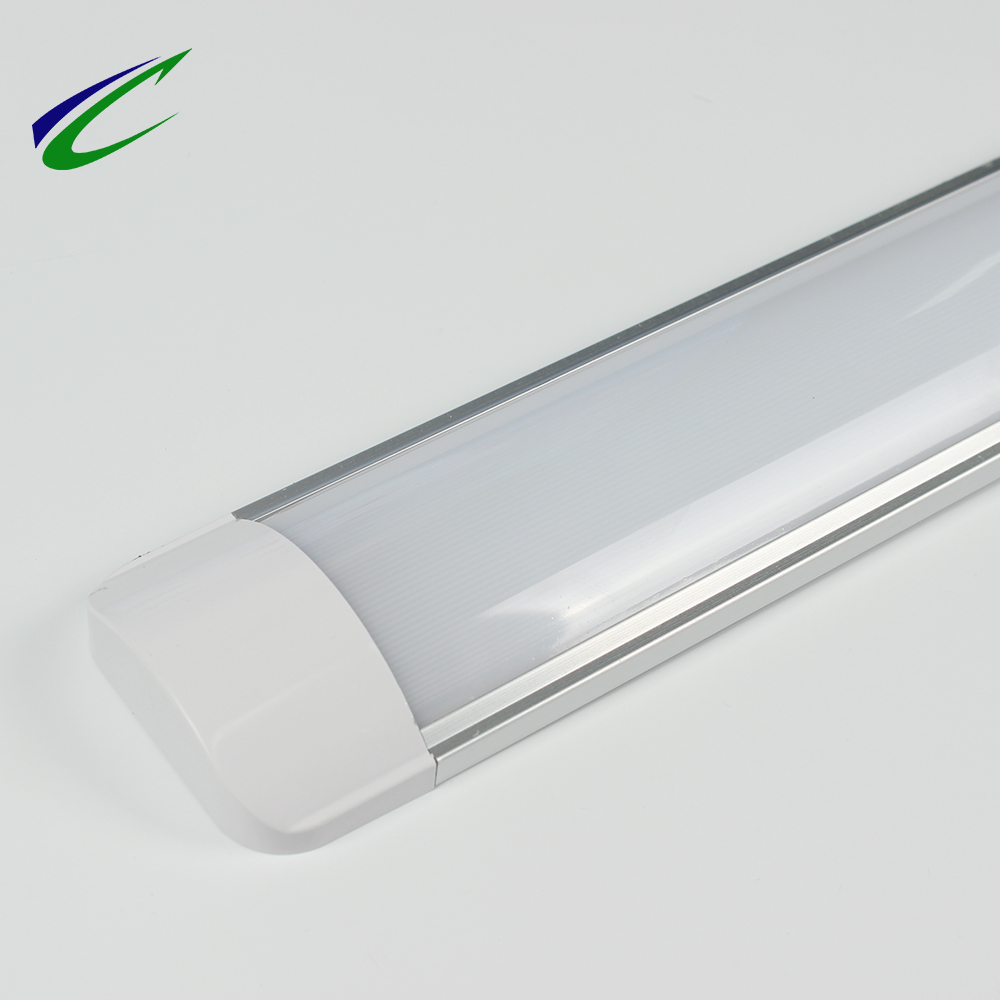

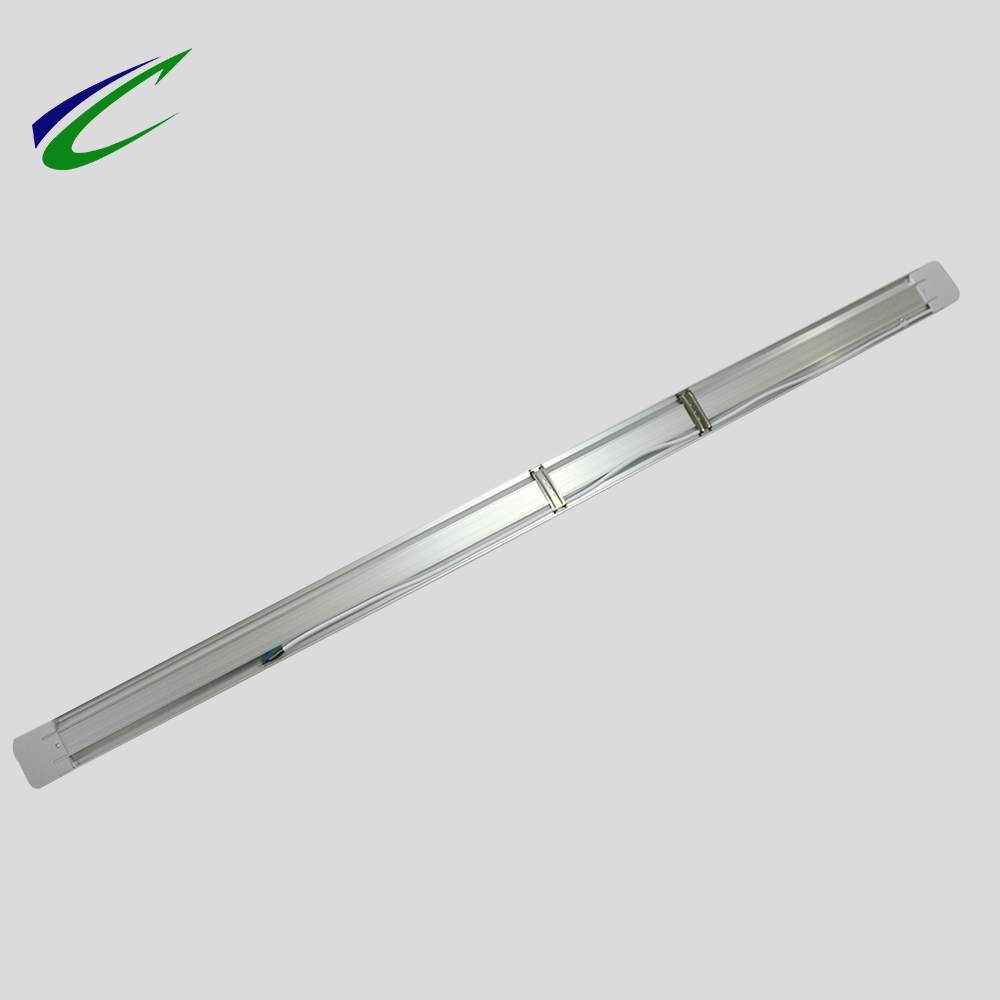

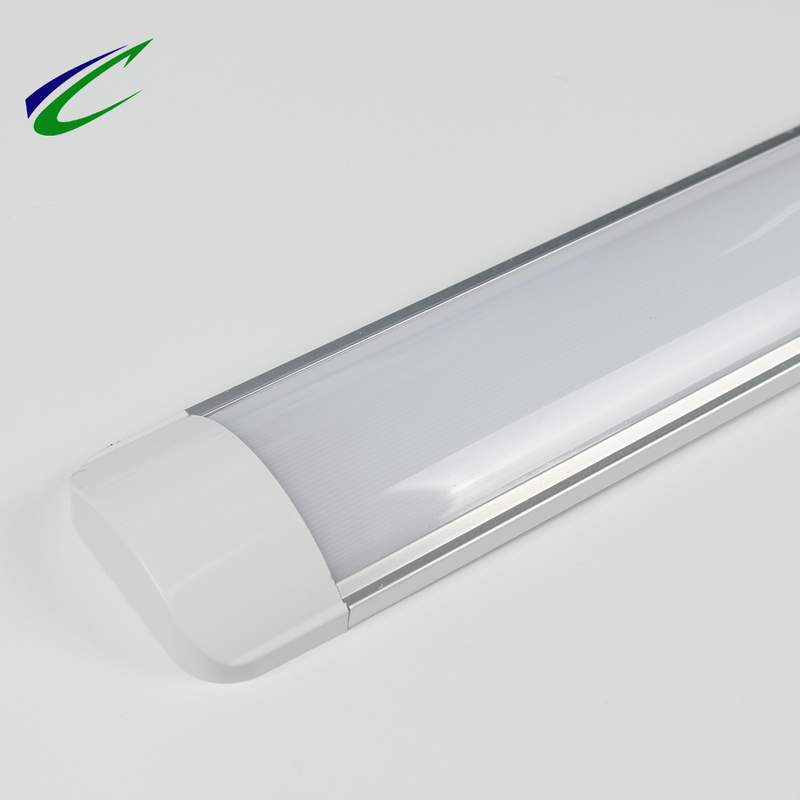

1.5m led batten light

Availability:
Quantity:
  • DY-LED45W

  • OEM

  • 9405409000





Product Description


Product Features:


1.The product appearrance novel,the structureis simple.
2.The product is Class II lamps and laterns,more safe and reliable.
3.The main material for aluminium lamp body ,6063 to ensure that the LED heat dissipation performance.
4.Two different function for choosing,Three different size for choosing.Tri-colour or linkable function.


Features:


- The product appearrance novel,the structure is simple.

- The product is Class II lamps and laterns,more safe and reliable.

- The main material for aluminium lamp body ,6063 to ensure that the LED heat dissipation performance.

- Two different function for choosing.Three different size for choosing.Tri-colour or linkable function.


Application:


- Car parks,lndustrial area,office,Corridors,Supermarkets and Shops,Bakeries,Storage area and etc.

25


Specification:


Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W/TRI 2ft 18W 3000K&4000K&5000K 110lm/w 192 600*85*29mm
DY-LED27W/TRI 3ft 27W 3000K&4000K&5000K 110lm/w 228 900*75*29mm
DY-LED36W/TRI 4ft 36W 3000K&4000K&5000K 110lm/w 288 1200*85*29mm
DY-LED45W/TRI 5t 45W 3000K&4000K&5000K 110lm/w 480 1500*85*29mm
DY-LED55W/TRI 6ft 55W 3000K&4000K&5000K 110lm/w 576 1800*85*29mm







Model Size Power CCT Lumen LED Qty(pcs) Dimension
DY-LED18W 2ft 18W 2700-6500K 110lm/w 96 600*75*23mm
DY-LED27W 3ft 27W 2700-6500K 110lm/w 144 900*75*23mm
DY-LED36W 4ft 36W 2700-6500K 110lm/w 184 1200*75*23mm
DY-LED45W 5t 45W 2700-6500K 110lm/w 240 1500*75*23mm
DY-LED55W 6ft 55W 2700-6500K 110lm/w 288 1800*75*23mm
0.6 1 0.6 0.6 2
